Basic faxing

> > >

Basic faxing

For special faxing features, refer to the Advanced Guide (see Fax features).
You cannot use this machine as a fax via the internet phone. For more information ask your internet service provider.
We recommend using traditional analog phone services (PSTN: Public Switched Telephone Network) when connecting telephone lines to use a fax machine. If you use other Internet services (DSL, ISDN, VolP), you can improve the connection quality by using the Micro-filter. The Micro-filter eliminates unnecessary noise signals and improves connection quality or Internet quality. Since the DSL Micro-filter is not provided with the machine, contact your Internet service provider for use on DSL Micro-filter.

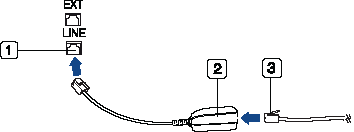

1. Line port
2. Micro filter
3. DSL modem / Telephone line

  (see Rear view).

Preparing to fax

Before you send or receive a fax, you need to connect the supplied line cord to your telephone wall jack (see Rear view). Refer to the Quick Installation Guide how to make a connection. The method of making a telephone connection is different from one country to another.

Sending a fax


	When you place the originals, you can use either the document feeder or the scanner glass. If the originals are placed on both the document feeder and the scanner glass, the machine will read the originals on the document feeder first, which has higher priority in scanning.

Place a single document face down on the document glass, or load the documents face up into the document feeder (see Loading originals).
Select (Fax) on the control panel.
Adjust the resolution and the darkness to suit your fax needs (see Adjusting the document settings).
Enter the destination fax number.
Press (Start) on the control panel. The machine starts to scan and send the fax to the destinations.


	If you want to send a fax directly from your computer, use Samsung Network PC Fax (see Sending a fax from your computer). When you want to cancel a fax job, press (Stop/Clear) before the machine starts transmission. If you used the scanner glass, the machine shows the message asking to place another page.

Sending a fax manually

Perform the following to send a fax using (On Hook Dial) on the control panel.

Place a single document face down on the document glass, or load the documents face up into the document feeder (see Loading originals).
Select (Fax) on the control panel.
Adjust the resolution and the darkness to suit your fax needs (see Adjusting the document settings).
Press (On Hook Dial) on the control panel.
Enter a fax number using the number keypad on the control panel.
Press (Start) on the control panel when you hear a high-pitched fax signal from the remote fax machine.

Sending a fax to multiple destinations

You can use the multiple send feature, which allows you to send a fax to multiple locations. Originals are automatically stored in memory and sent to a remote station. After transmission, the originals are automatically erased from memory (see Features by model).

Place a single document face down on the document glass, or load the documents face up into the document feeder (see Loading originals).
Select (Fax) on the control panel.
Adjust the resolution and the darkness to suit your fax needs (see Adjusting the document settings).
Select (Menu) > Fax Feature > Multi Send on the control panel.
Enter the number of the first receiving fax machine and press OK.

You can press speed dial numbers or select a group dial number using the (Address book) button.
Enter the second fax number and press OK.

The display asks you to enter another fax number to send the document.
To enter more fax numbers, press OK when Yes appears and repeat steps 5 and 6. You can add up to 10 destinations.
When you have finished entering fax numbers, select No at the Another No.? prompt and press OK.

The machine begins sending the fax to the numbers you entered in the order in which you entered them.

Receiving a fax

Your machine is preset to Fax mode at the factory. When you receive a fax, the machine answers the call on a specified number of rings and automatically receives the fax.

Adjusting the document settings

Before starting a fax, change the following settings according to your original’s status to get the best quality.


	It may be necessary to press OK to navigate to lower-level menus for some models.

Resolution

The default document settings produce good results when using typical text-based originals. However, if you send originals that are of poor quality, or contain photographs, you can adjust the resolution to produce a higher quality fax.

Select (Fax) > (Menu) > Fax Feature > Resolution on the control panel.

Select the option you want and press OK.

Standard: Originals with normal sized characters.
Fine: Originals containing small characters or thin lines or originals printed using a dot-matrix printer.

Super Fine: Originals containing extremely fine detail. mode is enabled only if the machine with which you are communicating also supports the Super Fine resolution.


	When your machine is set to Super Fine resolution and the fax machine with which you are communicating does not support Super Fine resolution, the machine transmits using the highest resolution mode supported by the other fax machine.

Photo Fax: Originals containing shades of gray or photographs.
Color Fax: Original with colors.

Press (Stop/Clear) to return to ready mode.

Darkness

You can select the degree of darkness of the original document.


	The darkness setting is applied to the current fax job. To change the default setting (see Fax).

Select (Fax) > (Menu) > Fax Feature > Darkness on the control panel.
Select a darkness level you want.
Press (Stop/Clear) to return to ready mode.
