Installing driver over the network

[Note]
  • Some features and optional goods may not be available depending on model or country (see Features by models).

  • The machine that does not support the network interface, it will not be able to use this feature (see Rear view).

  • You can install the printer driver and software when you insert the software CD into your CD-ROM drive.For windows, select the printer driver and software in the Select Software to Install window.

Windows

  1. Make sure that the machine is connected to the network and powered on. Also, your machine’s IP address should have been set (see Setting IP address).

  2. Insert the supplied software CD into your CD-ROM drive.

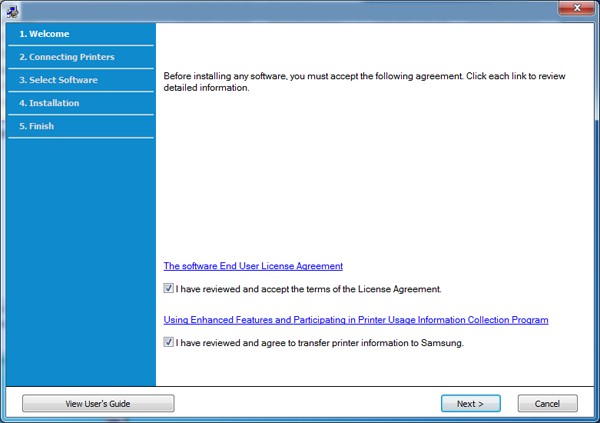

  3. Read and accept The software End User License Agreement and Using Enhanced Features and Participating in Printer Usage Information Collection Program (optional). Then, click Next.

  4. Select Network connection on the Printer Connection Type screen.

  5. If the Connected Device window appears, check that the machine is connected to your network. Then, click Next.

    [Note]

    The firewall software might be blocking network communication. efore connecting the device to the network, disable the computer’s firewall.

  6. The searched machines will be shown on the screen. Select the one you wish to use and click OK.

  7. Follow the instructions in the installation window.

Silent installation Mode

Silent installation mode is an installation method that does not require any user intervention. Once you start the installation, the machine driver and software are automatically installed on you computer. You can start the silent installation by typing /s or /S in the command window.

Command-line Parameters

Following table shows commands that can be used in the command window.

[Note]

Following command-line are effective and operated when command is used with /s or /S. But /h, /H or /? are exceptional commands that can be operated solely.

Command- line

Definition

Description

/s or/S

Starts silent installation.

Installs machine drivers without prompting any UIs or user intervention.

/p”<port name>” or/P”<port name>”

Specifies printer port.

[Note]

Network Port will be created by use of Standard TCP/IP Port monitor. For local port, this port must exist on system before being specified by command.

Printer port name can be specified as IP address, hostname, USB local port name or IEEE1284 port name.

For example:

  • /p”xxx.xxx.xxx.xxx” in where, “xxx.xxx.xxx.xxx” means IP address for network printer. /p”USB001”, /P”LPT1:”, /p”hostname”

/a”<dest_path>” or/A”<dest_path>”

Specifies destination path for installation.

[Note]

The destination path should be a fully qualified path.

Since machine drivers should be installed on the OS specific location, this command applies to only application software.

/n”<Printer name>” or/N”<Printer name>”

Specifies printer name. Printer instance shall be created as specified printer name.

With this parameter, you can add printer instances as your wishes.

/nd or/ND

Commands not to set the installed driver as a default machine driver.

It indicates installed machine driver will not be the default machine driver on your system if there are one or more printer drivers installed. If there is no installed machine driver on your system, then this option won’t be applied because Windows OS will set installed printer driver as a default machine driver.

/x or/X

Uses existing machine driver files to create printer instance if it is already installed.

This command provides a way to install a printer instance that uses installed printer driver files without installing an additional driver.

/up”<printer name>” or/UP”<printer name>”

Removes only specified printer instance and not the driver files.

This command provides a way to remove only specified printer instance from your system without effecting other printer drivers. It will not remove printer driver files from your system.

/d or/D

Uninstalls all device drivers and applications from your system.

This command will remove all installed device drivers and application software from your system.

/v”<share name>” or/V”<share name>”

Shares installed machine and add other available platform drivers for Point & Print.

It will install all supported Windows OS platform’s machine drivers to system and share it with specified <share name> for point and print.

/o or /O

Opens Printers and Faxes folder after installation.

This command will open Printers and Faxes folder after the silent installation.

/h, /H or /?

Shows Command-line Usage.

Mac

  1. Make sure that the machine is connected to your network and powered on.

  2. Insert the supplied software CD into your CD-ROM drive.

  3. Double-click the CD-ROM icon that appears on your Mac desktop.

  4. Double-click the MAC_Installer folder > Installer OS X icon.

  5. Click Continue.

  6. Read the license agreement and click Continue.

  7. Click Agree to agree to the license agreement.

  8. When the message which warns that all applications will close on your computer appears, click Continue.

  9. Click Continue on the User Options Pane.

    [Note]

    If you have not set the IP address yet, click Set IP address and refer to IPv4 configuration using SetIP (Mac). If you want to set the wireless setting, refer to Setup using Mac.

  10. Click Install. All components necessary for machine operations will be installed.

    If you click Customize, you can choose individual components to install.

  11. Enter the password and click OK.

  12. Installing software requires you to restart your computer. Click Continue Installation.

  13. After the installation is finished, click Quit or Restart.

  14. Open the Applications folder > Utilities > Print Setup Utility.

    • For Mac OS X 10.5-10.8, open the Applications folder > System Preferences and click Print & Fax.

  15. Click Add on the Printer List.

    • For Mac OS X 10.5-10.8, click the “+” icon. A display window will pop up.

  16. For Mac OS X 10.4, click IP Printer.

    • For Mac OS X 10.5-10.8, click IP.

  17. Select HP Jetdirect - Socket in Protocol.

    [Note]

    When printing a document containing many pages, printing performance may be enhanced by choosing Socket for Printer Type option.

  18. Enter the machine’s IP address in the Address input field.

  19. Enter the queue name in the Queue input field. If you cannot determine the queue name for your machine server, try using the default queue first.

  20. For Mac OS X 10.4, if Auto Select does not work properly, select Samsung in Print Using and your machine name in Model.

    • For Mac OS X 10.5-10.8, if Auto Select does not work properly, choose Select Printer Software and your machine name in Print Using.

  21. Click Add.

    Your machine appears in the Printer List, and is set as the default machine.

[Note]

To install the fax driver:

  1. Open the Applications folder > Samsung > Fax Queue Creator.

  2. Your machine appears on the Printer List.

  3. Select machine to use and Click Create button.

Linux

You need to download Linux software packages from the Samsung website to install the printer software (http://www.samsung.com > find your product > Support or Downloads).

Install the Linux driver and add network printer

  1. Make sure that the machine is connected to your network and powered on. Also, your machine’s IP address should have been set.

  2. Download the Unified Linux Driver package from the Samsung website.

  3. Extract the UnifiedLinuxDriver.tar.gz file and open the new directory.

  4. Double-click the cdroot > autorun.

  5. The Samsung installer window opens. Click Next.

  6. The add printer wizard window opens. Click Next.

  7. Select network printer and click Search button.

  8. The machine’s IP address and model name appears on list field.

  9. Select your machine and click Next.

  10. Input the printer description and Next.

  11. After the machine is added, click Finish.

  12. When installation is done, click Finish.

Add a network printer

  1. Double-click the Unified Driver Configurator.

  2. Click Add Printer.

  3. The Add printer wizard window opens. Click Next.

  4. Select Network printer and click the Search button.

  5. The printer’s IP address and model name appears on list field.

  6. Select your machine and click Next.

  7. Enter the printer description and click Next.

  8. After the machine is added, click Finish.

UNIX

[Note]
  • Make sure your machine supports the UNIX operating system before installing the UNIX printer driver (see Operating System).

  • The commands are marked with “”, when typing the commands, do not type “”.

  • Some features and optional goods may not be available depending on model or country (see Operating System).

To use the UNIX printer driver, you have to install the UNIX printer driver package first, then setup the printer. You can download the UNIX printer driver package from the Samsung website (http://www.samsung.com > find your product > Support or Downloads).

Installing the UNIX printer driver package

The installation procedure is common for all variants of UNIX OS mentioned.

  1. From the Samsung website, download and unpack the UNIX Printer Driver package to your computer.

  2. Acquire root privileges.

    su -

  3. Copy the appropriate driver archive to the target UNIX computer.

    [Note]

    See administration guide of your UNIX OS for details.

  4. Unpack the UNIX printer driver package.

    For example, on IBM AIX, use the following commands.

    gzip -d < enter the package name | tar xf -

  5. Go to the unpacked directory.

  6. Run the install script.

    ./install –i

    install is the installer script file which is used to install or uninstall the UNIX Printer Driver package.

    Use “chmod 755 install” command to give the permission to the installer script.

  7. Execute the “. /install –c” command to verify installation results.

  8. Run “installprinter” from the command line. This will bring up the Add Printer Wizard window. Setup the printer in this window referring to the following procedures.

    [Note]

    On some UNIX OS, for example on Solaris 10, just added printers may not be enabled and/or may not accept jobs. In this case run the following two commands on the root terminal:

    accept <printer_name>

    enable <printer_name>

Uninstalling the printer driver package

[Note]

The utility should be used to delete the printer installed in the system.

  1. Run “uninstallprinter” command from the terminal.

    It will open the Uninstall Printer Wizard.

    The installed printers are listed in the drop-down list.

  2. Select the printer to be deleted.

  3. Click Delete to delete the printer from the system.

  4. Execute the “. /install –d” command to uninstall the whole package.

  5. To verify removal results, execute the “. /install –c” command.

To re-install it, use the command “. /install –i” to reinstall the binaries.

Setting up the printer

To add the printer to your UNIX system, run ‘installprinter’ from the command line. This will bring up the Add Printer Wizard window. Setup the printer in this window according to the following steps:

  1. Type the name of the printer.

  2. Select the appropriate printer model from the model list.

  3. Enter any description corresponding to the type of the printer in the Type field. This is optional.

  4. Specify any printer description in the Description field. This is optional.

  5. Specify the printer location in the Location field.

  6. Type the IP address or DNS name of the printer in the Device textbox for network-connected printers. On IBM AIX with jetdirect Queue type, only the DNS name is possible-numeric IP address is not allowed.

  7. Queue type shows the connection as lpd or jetdirect in the corresponding list box. Additionally, usb type is available on Sun Solaris OS.

  8. Select Copies to set the number of copies.

  9. Check the Collate option to receive copies already sorted.

  10. Check the Reverse Order option to receive copies in the reverse order.

  11. Check the Make Default option to set this printer as default.

  12. Click OK to add the printer.
