Machine overview

Accessories

Power cord

Quick installation guide

Software CD[a]

Misc. accessories[b]

[a] The software CD contains the print drivers, user’s guide, and software applications.

[b] Miscellaneous accessories included with your machine may vary by country of purchase and specific model.

Front view

[Note]

  • This illustration may differ from your machine depending on your model. There are various types of machine.

  • Some features and optional goods may not be available depending on model or country (see Features by models).

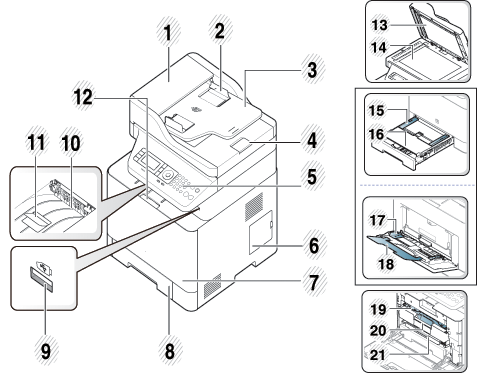

CLX-419xN/ CLX-419xFN/ CLX-419xFW/ CLX-626xND/ CLX-626xFD Series

1

Automatic Document Feeder (ADF) cover

12

Front cover handle

2

Automatic Document Feeder(ADF) width guide

13

Scanner lid

3

Automatic Document Feeder(ADF) input tray

14

Scanner glass

4

Automatic Document Feeder(ADF) output tray

15

Paper width guides on a manual feeder

5

Control panel

16

Manual feeder

6

Control board cover

17

Paper width guides on a multi-purpose tray[a]

7

Front cover

18

Multi-purpose support tray[a]

8

Tray 1

19

Toner cartridge

9

USB memory port

20

Toner cartridge handle

10

Output tray

21

Intermediate Transfer Belt (ITB)

11

Document feeder output support



[a] CLX-626xND/ CLX-626xFD Series only.

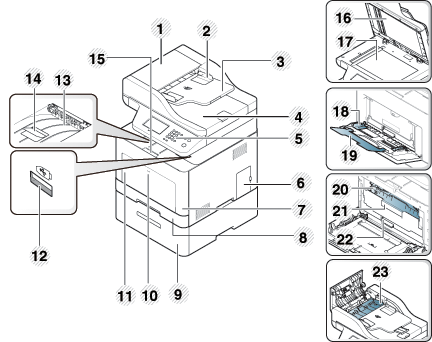

CLX-626xFR/CLX-626xFW Series

1

Dual Automatic Document Feeder (DADF) cover

13

Output tray

2

Dual Automatic Document Feeder (DADF) width guide

14

Document feeder output support

3

Dual Automatic Document Feeder (DADF) input tray

15

Front cover handle

4

Dual Automatic Document Feeder (DADF) output tray

16

Scanner lid

5

Control panel

17

Scanner glass

6

Control board cover

18

Paper width guides on a multi-purpose tray

7

Front cover

19

Multi-purpose support tray

8

Tray 1

20

Toner cartridge

9

Optional tray[a]

21

Toner cartridge handle

10

Push-release of Multi-purpose tray

22

Intermediate Transfer Belt (ITB)

11

Multi-purpose tray

23

Duplex jam cover

12

USB memory port



[a] This is an optional feature. CLX-626xND/CLX-626xFD/CLX-626xFR/CLX-626xFW Series only.

Rear view

[Note]

  • This illustration may differ from your machine depending on your model. There are various types of machine.

  • Some features and optional goods may not be available depending on model or country (see Features by models).

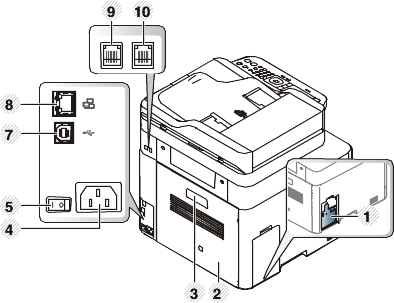

CLX-419xN/ CLX-419xFN/ CLX-419xFW Series

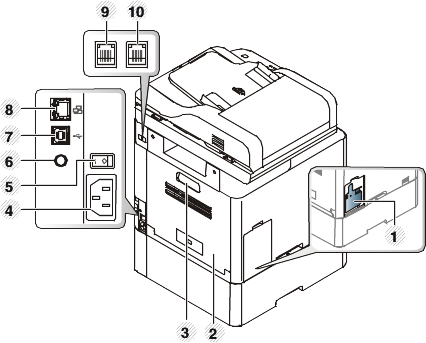

CLX-626xND/CLX-626xFD/CLX-626xFR/CLX-626xFW Series

1

Waster toner container

4

Power receptacle

7

USB port[b]

10

Extension telephone socket (EXT.)[c]

2

Rear cover

5

Power-switch

8

Network port



3

Rear cover handle

6

5V output port for IEEE 1284B parallel connector[a][b]

9

Telephone line socket (LINE)[c]

[a] This is an optional feature. CLX-626xND/CLX-626xFD/CLX-626xFR/CLX-626xFW Series only.

[b] The optional IEEE 1284B parallel connector can be used by plugging in both the USB port and the 5V output port.

[c] CLX-419xFN/CLX-419xFW/CLX-626xFD/CLX-626xFR/CLX-626xFW Series only.
