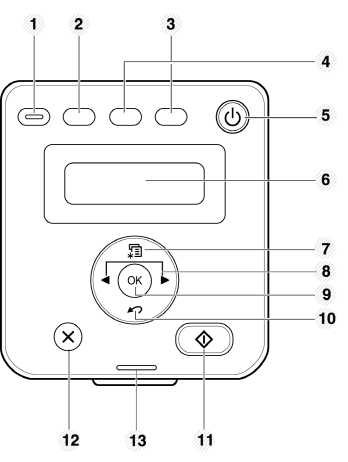

1

Eco

Turn into eco mode to reduce toner consumption and paper usage when pc-printing and copying only (see Eco printing).

2

Darkness

Adjust the brightness level to make a copy for easier reading, when the original contains faint markings and dark images.

Print Screen

Press this button and the display will Print Screen? on the display screen. If you want to print only the active screen, select the Active. If you want to print the whole screen, select Full.

Print Screen can only be used in the Windows and Macintosh operating systems. You can only use this function with USB-connected machine. When printing the active window/whole monitor screen using the print screen button, the machine may use more toner depending on what is being printed. You can only use this function if the machine’s Samsung Easy Printer Manager program is installed. If you are a Macintosh OS user, you need to enable Screen Print Settings from the Samsung Easy Printer Manager to use the Print Screen feature.

3

Scan to

Sends scanned data (see Basic Scanning).

4

ID Copy

Allows you to copy both sides of an ID card like a driver’s license on a single side of paper (see ID card copying).

5

Power/Wakeup

Turns the power on or off, or wakes up the machine from the power save mode. If you need to turn the machine off, press this button for more than three seconds.

6

Display screen

Shows the current status and displays prompts during an operation.

7

Menu

Opens Menu mode and scrolls through the available menus (see Menu overview).

8

Left/Right Arrows

Scrolls through the options available in the selected menu and increases or decreases values.

9

OK

Confirms the selection on the screen.

10

Back

Sends you back to the upper menu level.

11

Start

Starts a job.

12

Stop/Clear

Stops an operations at any time.

13

Status LED

Indicates the status of your machine (see Understanding the status LED).

1

Eco

Turn into eco mode to reduce toner consumption and paper usage when pc-printing and copying only (see Eco printing).

2

Darkness

Adjust the brightness level to make a copy for easier reading, when the original contains faint markings and dark images.

Print Screen

Press this button and the display will Print Screen? on the display screen. If you want to print only the active screen, select the Active. If you want to print the whole screen, select Full.

Print Screen can only be used in the Windows and Macintosh operating systems. You can only use this function with USB-connected machine. When printing the active window/whole monitor screen using the print screen button, the machine may use more toner depending on what is being printed. You can only use this function if the machine’s Samsung Easy Printer Manager program is installed. If you are a Macintosh OS user, you need to enable Screen Print Settings from the Samsung Easy Printer Manager to use the Print Screen feature.

3

ID Copy

Allows you to copy both sides of an ID card like a driver’s license on a single side of paper (see ID card copying).

4

Power/Wakeup

Turns the power on or off, or wakes up the machine from the power save mode. If you need to turn the machine off, press this button for more than three seconds.

5

Fax

Switches to Fax mode.

6

Copy

Switches to Copy mode.

7

Scan

Switches to Scan mode.

8

Menu

Opens Menu mode and scrolls through the available menus (see Menu overview).

9

Left/Right Arrows

Scrolls through the options available in the selected menu and increases or decreases values.

10

OK

Confirms the selection on the screen.

11

Back

Sends you back to the upper menu level.

12

Start

Starts a job.

13

Stop/Clear

Stops an operations at any time.

14

Status LED

Indicates the status of your machine (see Understanding the status LED).

15

Numeric keypad

Dials a number or enters alphanumeric characters (see Keypad letters and numbers).

16

On Hook Dial

When you press this button, you can hear a dial tone. Then enter a fax number. It is similar to making a call using speaker phone (see Receiving manually in Tel mode).

17

Redial/Pause

Redials the recently sent fax number or received caller ID in ready mode, or inserts a pause(-) into a fax number in edit mode (see Redialing the fax number).

18

Address Book

Allows you to store frequently used fax numbers or search for stored fax numbers.

19

Display screen

Shows the current status and displays prompts during an operation.
