Wireless networks require higher security, so when an access point is first set up, a network name (SSID), the type of security used, and a Network Password are created for the network. Ask your network administrator about this information before proceeding with the machine installation.
You can set wireless settings either from the machine or the computer. Choose the setting method from the below table.
|
Set up method |
Connecting method |
Description & Reference |
---|---|---|
With Access Point |
From the computer |
See Setting up via USB cable for Window. |
See Access point without a USB cable for Window. |
||
See Setting up via USB cable for Mac. |
||
See Access point without a USB cable for Mac. |
||
From the machine’s control panel |
||
See Using the . |
||
Wi-Fi Direct setup |
If your machine and access point (or wireless router) support Wi-Fi Protected Setup™ (WPS), then you can easily configure the wireless network settings through the
button menu without the need for a computer.
|
Check if the access point (or wireless router) supports Wi-Fi Protected Setup™ (WPS).
Check if your machine supports Wi-Fi Protected Setup™ (WPS).
Networked computer (PIN mode only)
There are two methods available to connect your machine to a wireless network.
The Push Button Configuration (PBC) method allows you to connect your machine to a wireless network by pressing both the button menu on the control panel of your machine and the WPS (PBC) button on a Wi-Fi Protected Setup™ WPS-enabled access point (or wireless router) respectively.
The Personal Identification Number (PIN) method helps you connect your machine to a wireless network by entering the supplied PIN information on a Wi-Fi Protected Setup™ WPS-enabled access point (or wireless router).
Factory default in your machine is PBC mode, which is recommended for a typical wireless network environment.
Press the (
) button on the control panel and select > > > .Press the WPS (PBC) button on the access point (or wireless router).
Follow the instruction on the display screen.
The messages are displayed on the display screen
Press
> > > .The eight-digit PIN appears on the display.
You need to enter the eight-digit PIN within two minutes on the computer that is connected to the access point (or wireless router).
Follow the instruction on the display screen.
The messages are displayed on the display screen
Before starting, you will need to know the network name (SSID) of your wireless network and the network key if it is encrypted. This information was set when the access point (or wireless router) was installed. If you do not know about your wireless environment, please ask the person who set up your network.
Press the (
) button on the control panel and select > then from the display screen.The machine will display a list of available networks from which to choose. After a network is chosen then printer will prompt for the corresponding security key.
Select the Wi-Fi network option you want.
Shortcut to the program without the CD: If you have installed the printer driver once, you can access the program without the CD. |
Access point
Network-connected computer
Software CD that was provided with your machine
A machine installed with a wireless network interface
USB cable
Check wheter the USB cable is connected to the machine.
Turn on your computer, access point, and machine.
Insert the supplied software CD into your CD-ROM drive.
If the installation window does not appear, click
> > > .X:\
replacing “X” with the letter, which represents your CD-ROM drive and click .For Windows 8,
If the installation window does not appear, from
, select > and search for . Type in X:\Setup.exe, replacing “X” with the letter that represents your CD-ROM drive and click .If “
.” pop-up window appears, click the window and select .Review and accept the installation agreements in the installation window. Then, click

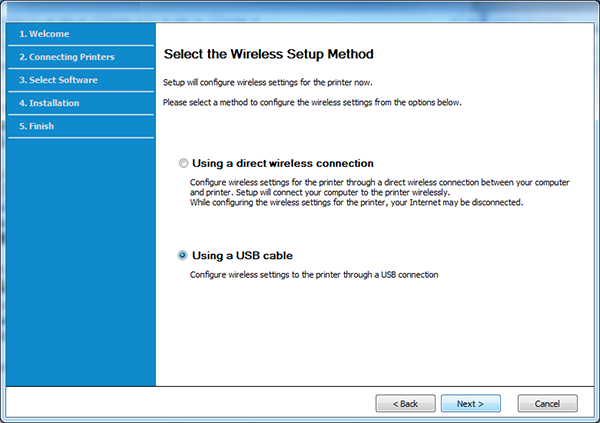

.Select
on the screen. Then, click .On the
screen, select Then, click .If your printer is already connected on the network, select
.Select
on the screen. Then, click .After searching, the window shows the wireless network devices. Select the name (SSID) of the access point you want to use and click
.
If you cannot find the network name you want to choose, or if you want to set the wireless configuration manually, click . |
The wireless network security window appears when the access point has security settings. Enter the Network Password of the access point (or router). |

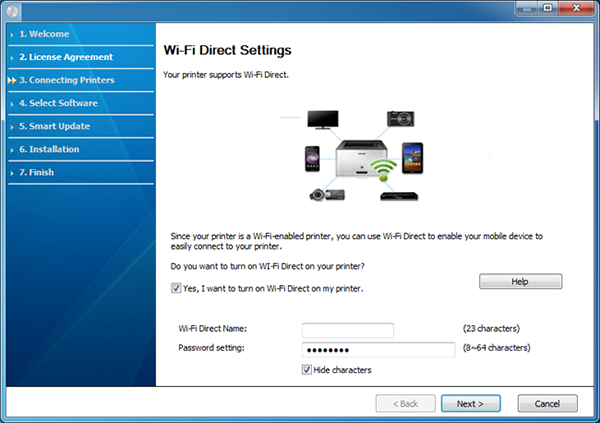

If your printer supports Wi-Fi Direct, the following screen appears.
Click
.
|
When the wireless network set up is completed, disconnect the USB cable between the computer and machine. Click
.Select the components to be installed.
Follow the instructions in the installation window.
WiFi-enabled PC running Windows 7 or higher and an access point (router)
Software CD that was provided with your machine
A machine installed with a wireless network interface
While setting the wireless network, the machine uses PC's wireless LAN. You might not be able to connect to the Internet. |
Turn on your computer, access point, and machine.
Insert the supplied software CD into your CD-ROM drive.
If the installation window does not appear, click
> > > .X:\
replacing “X” with the letter, which represents your CD-ROM drive and click .For Windows 8,
If the installation window does not appear, from
, select > and search for . Type in X:\Setup.exe, replacing “X” with the letter that represents your CD-ROM drive and click .If “
.” pop-up window appears, click the window and select .Review and accept the installation agreements in the installation window. Then, click
.Select
on the screen. Then, click .On the
screen, select Then, click .If your printer is already connected on the network, select
.Select
on the screen. Then, click .
|
When the wireless network set up is completed, click
.Follow the instructions in the installation window.
Access point
Network-connected computer
Software CD that was provided with your machine
A machine installed with a wireless network interface
USB cable
Make sure that the machine is connected to your computer andpowered on.
Insert the supplied software CD into your CD-ROM drive.
Select the CD-ROM volume that appears on
.Double-click
icon.Read the license agreement and check installation agreement button.
Click
Select
on theClick
If the installer asks you to allow access to the keychain, click
.
If you clicked in this step, the window appears without asking for access to the keychain. If this occurs, click in the window. |
On the
screen, select , and then click .If the screen dose not appear, go to step 14.
After searching, the window shows the wireless network devices. Select the name (SSID) of the access point you want to use and click
.
When you set the wireless configuration manually, click .The wireless network security window appears when the access point has security enabled. Enter the Network Key of the access point (or router). |
The window showing the wireless network setting appears. Check the settings and click
.
|
The
window appears. Click .When the wireless network settings are completed, disconnect the USB cable between the computer and machine. Click
.Follow the instructions in the installation window.
WiFi-enabled Mac running Mac OS 10.7 or higher and an access point (router)
Software CD that was provided with your machine
A machine installed with a wireless network interface
Make sure that the machine is connected to your computer andpowered on.
Insert the supplied software CD into your CD-ROM drive.
Select the CD-ROM volume that appears on
.Double-click
icon.Read the license agreement and check installation agreement button.
Click
.Select
on the screen.Click
.If the installer asks you to allow access to the keychain, click
.If the
window appears, select the printer named DIRECT-xxx.
If the screen appears, press the (WPS) button from the control panel within 2 minutes. |
When the wireless network set up is complete, follow the instructions in the installation window.
See your network administrator, or the person that set up your wireless network, for information about your network configuration. |
Your machine is a network compatible machine. To enable your machine to work with your network, you will need to perform some configuration procedures.
Access point
Network-connected computer
Software CD that was provided with your machine
A machine installed with a wireless network interface
Network cable
You can identify the network settings of your machine by printing a network configuration report.
This program is used to manually set the network IP address of your machine using its MAC address to communicate with the machine. The MAC address is the hardware serial number of the network interface and can be found in the Network Configuration Report.
Before starting you will need to know the network name (SSID) of your wireless network and the network key if it is encrypted. This information was set when the access point (or wireless router) was installed. If you do not know about your wireless environment, please ask the person who set up your network.
To configure wireless parameters, you can use
.Before starting wireless parameter configuration, check the cable connection status.
Check whether or not the network cable is connected to the machine. If not, connect the machine with a standard network cable.
Start a web browser such as Internet Explorer, Safari, or Firefox and enter your machine’s new IP address in the browser window.
For example,
Click SyncThru™ Web Service website.
on the upper right of theIf it’s your first time logging into
you need to log-in as an administrator. Type in the below default ID and password. We recommend you to change the default password for security reasons.:
:
When the
window opens, click .Click
> .Select the one
in the list.Click
.If the wireless security setting window appears, enter the registered password (network password) and click
.The confirmation window appears, please check your wireless setup. If the setup is right, click
.Check whether the network cable is connected to the machine. If not, connect the machine with a standard network cable.
Start a web browser such as Internet Explorer, Safari, or Firefox and enter your machine’s new IP address in the browser window.
For example,
Click SyncThru™ Web Service website.
on the upper right of theIf it’s your first time logging into
you need to log-in as an administrator. Type in the below default ID and password. We recommend you to change the default password for security reasons.:
:
When the
window opens, click .Click
.You can turn the Wi-Fi network on/off.
Wi-Fi Direct is a secure and easy-to-use peer-to-peer connection between a Wi-Fi Direct-enabled printer and mobile device.
With Wi-Fi Direct, you can connect your printer to a Wi-Fi Direct network while concurrently connecting to an access point. You can also use a wired network and a Wi-Fi Direct network simultaneously so multiple users can access and print documents both from Wi-Fi Direct and from a wired network.
|
You can enable Wi-Fi Direct feature by one of the following methods.
Press the (
) button on the control panel and select > > from the display screen.Tap
.Enable
.If your printer is using a network cable or a wireless access point, you can enable and configure Wi-Fi Direct from SyncThru™ Web Service.
Access
and select > > > .Enable
™ and set other options.After setting up Wi-Fi Direct from the printer, refer to the user manual of the mobile device you are using to set its Wi-Fi Direct.
After setting up Wi-Fi Direct, you need to download the mobile printing application (For example: Samsung Mobile printer) to print from your smartphone.
|
Your machine may not be turned on. Turn on your computer and the machine.
USB cable is not connected between your computer and machine. Connect the machine to your computer using the USB cable.
The machine does not support wireless networking. Check the machine's user's guide included on the software CD supplied with your machine and prepare a wireless network machine.
The machine is unable to find the network name (SSID) you have selected or entered. Check the network name (SSID) on your access point and try connecting again.
Your access point is not turned on. Turn on your access point.
Security is not configured correctly. Check the configured security on your access point and machine.
Your computer is not receiving a signal from your machine. Check the USB cable and your machine’s power.
Your machine is connected with a wired network cable. Remove the wired network cable from your machine.
Cycle the power for the access point (or wireless router) and machine.
The configured network address is unable to connect between your computer and machine.
For a DHCP network environment
The receives the IP address automatically (DHCP) when computer is configured to DHCP.
If the printing job is not working in DHCP mode, the problem may be caused by the automatically changed IP address. Compare the IP address between the product's IP address and the printer port's IP address. How to compare:
|
For a Static network environment
The machine uses the static address when the computer is configured to static address.
For example,
If the computer’s network information is as shown below:
IP address: 169.254.133.42
Subnet Mask: 255.255.0.0
Then the machine’s network information should be as below:
IP address: 169.254.133.43
Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)
Gateway: 169.254.133.1
If problems occur while using the machine on a network, check the following:
For information on the access point (or wireless router), refer to its own user's guide. |
You cannot enable wired and wireless networks at the same time.
Your computer, access point (or wireless router), or machine may not be turned on.
Check the wireless reception around the machine. If the router is far from the machine or there is an obstacle, you might have difficulty receiving the signal.
Cycle the power for the access point (or wireless router), machine, and computer. Sometimes cycling the power can recover network communication.
Check whether firewall software (V3 or Norton) is blocking the communication.
If the computer and the machine are connected on the same network and it cannot be found when searching, firewall software might be blocking the communication. Refer to the user's guide for the software to turn it off and try searching for the machine again.
Check whether the machine's IP address is allocated correctly. You can check the IP address by printing the network configuration report.
Check whether the access point (or wireless router) has a configured security (password). If it has a password, refer to the access point (or wireless router) administrator.
Check the machine's IP address. Reinstall the machine driver and change the settings to connect to the machine on the network. Due to the characteristics of DHCP, the allocated IP address could change if the machine is not used for a long time or if the access point has been reset.
Register the product's MAC address when you confogure the DHCP server on the access point (or wireless router). Then you can always use the IP address that is set with the MAC address. You can identify the Mac address of your machine by printing a network configuration report (see Printing a network configuration report).
Check the wireless environment. You might not be able to connect to the network in the infrastructure environment where you need to type in a user's information before connecting to the access point (or wireless router).
This machine only supports IEEE 802.11 b/g/n and Wi-Fi. Other wireless communication types (e.g., Bluetooth) are not supported.
You cannot use infrastructure mode at the same time for Samsung wireless network machines.
The machine is within the range of the wireless network.
The machine is located away from obstacles that could block the wireless signal.
Remove any large metal objects between the access point (or wireless router) and the machine.
Make sure the machine and wireless access point (or wireless router) are not separated by poles, walls, or support columns containing metal or concrete.
The machine is located away from other electronic devices that may interfere with the wireless signal.
Many devices can interfere with the wireless signal, including a microwave oven and some Bluetooth devices.
Whenever the configuration of your access point (or wireless router) changes, you must do the product's wireless network setup again.
The maximum number of device that can be connected via
is 3.If
is , this machine only supports IEEE 802.11 b/g.If the access point is set to work with the 802.11n standard only, it may not connect to your machine.
