Machine overview

Accessories

Power cord

Quick installation guide

Software CD[a]

Misc. accessories[b]

[a] The software CD contains the print drivers, user’s guide, and software applications.

[b] Miscellaneous accessories included with your machine may vary by country of purchase and specific model.

Front view

[Note]

  • This illustration may differ from your machine depending on your model. There are various types of machine.

  • Some features and optional goods may not be available depending on model or country (see Features by models).

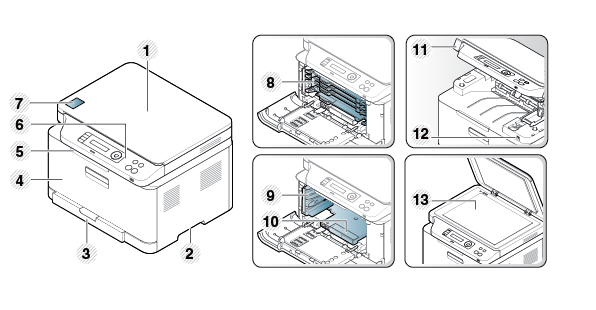

C46xW

1

Scanner lid

8

Toner cartridges

2

Handle

9

Waste toner container

3

Tray

10

Imaging unit

4

Front door

11

Scan unit[a] [b]

5

Output support

12

USB port

6

Control panel

13

Scanner glass

7

NFC tag



[a] Close the scanner lid before opening the scan unit.

[b] Be careful not to pinch your fingers.

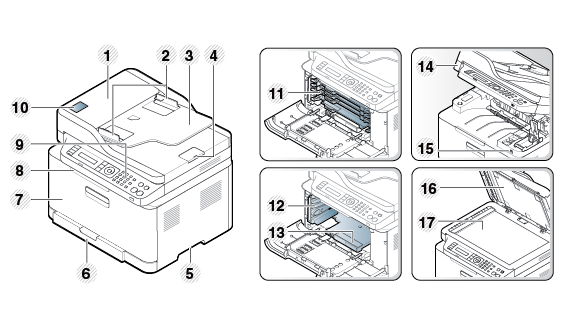

C46xFW

1

Document feeder cover

10

NFC tag

2

Document feeder width guide

11

Toner cartridge

3

Document feeder input tray

12

Waste toner container

4

Document feeder output support

13

Imaging unit

5

Handle

14

Scan unit[a] [b]

6

Tray

15

USB port

7

Front cover

16

Scanner lid

8

Document output tray

17

Scanner glass

9

Control panel



[a] Close the scanner lid before opening the scan unit.

[b] Be careful not to pinch your fingers.

Rear view

[Note]

  • This illustration may differ from your machine depending on your model. There are various types of machine.

  • Some features and optional goods may not be available depending on model or country (see Features by models).

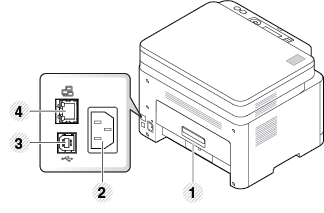

C46xW

1

Rear cover

3

USB port

2

Power receptacle

4

Network port

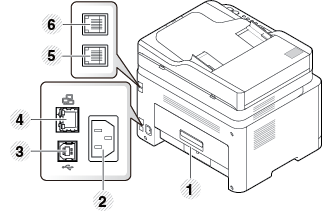

C46xFW

1

Rear cover

5

Telephone line socket (LINE)

2

Power receptacle

6

Extension telephone socket (EXT.)

3

USB port



4

Network port
