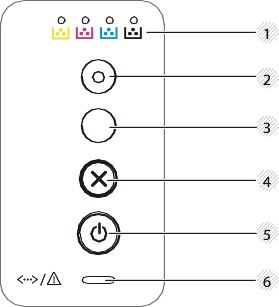

Control panel overview

[Note]

This control panel may differ from your machine depending on its model. There are various types of control panels.

1

Toner LED

Shows the status of the toner (see Status LED).

2

Eco

Turn into eco mode to reduce toner consumption and paper usage when pc-printing only (see Eco printing).

3

(WPS)

Configures the wireless network connection easily without a computer (see Wireless network setup).

  • Manual print

    • Press this button each time you load a sheet of paper in the tray if you have selected Manual Feeder for Source in your printer driver.

4

(Cancel)

You can stop an operation at any time. You also can do the following functions.

  • Configuration sheet

    • Press and hold this button for about 2 seconds until the green LED blinks slowly, and release.

  • Prints event log report / usage counter

    • Press and hold this button for about 4 seconds until the green LED blinks quickly, and release.

  • Prints supplies info report

    • Press and hold this button for about 6 seconds until the green LED on, and release.

5

(Power/Wakeup)

You can turn the power off or wake the machine up from the sleep mode with this button.

6

(Status LED)

Shows the status of your machine (see Status LED).
